either the Nanoleaf touch API is broken, or I am

When I bought my Nanoleaf panels, which I wrote about in my previous two posts, I didn’t realize that they’re not just programmable lights. They’re also touch sensors. Or so they claim! The truth is, I haven’t been able to use the touch interface reliably. This post will recount my efforts.

I should say up front: I haven’t really tried to use the default touch programming. That is: I haven’t gone into the Nanoleaf iOS app to set events onto touch events. I know that isn’t what I want to do long term, and I didn’t have any good ideas about how to use it for diagnostic purposes. I do know that the touch sensors seem to work to some extent, because when touched, the panels brighten.

server-sent events

Anyway, here’s the deal: There’s an HTTP endpoint in the Nanoleaf Shapes API that provides you Server-sent events providing updates on the device’s status. I don’t like server-sent events. It’s fine, I know how they work, and they’re not terrible. It’s just that I don’t like reading the spec. This is a me problem, not a server-sent events problem, but there it is. Anyway, your client needs to GET /api/v1/{your-auth-token}/events?id=1,2,3,4 and read chunks. The id parameter doesn’t have to be exactly that. It’s a comma-separated list of event types. What are the event types? Well, at first, it depends on which part of the documentation you believe.

Section 3.5.1 says:

For example if a client wished to register for the state (id=1), layout (id=2) and touch (id=3) events, it would sent the following request:

Section 3.5.2 gives a table with the following ids:

  • State: 1
  • Layout: 2
  • Effects: 3
  • Touch: 4

In the end, I don’t think this is actually a contraction, just a terrible choice. Here’s why…

Server-sent-events are sequences of key/value lines separated by blank lines. So, you might get this:

id: 1
data: {"events":[{"attr":1,"value":false}]}

id: 3
data: {"events":[{"attr":1,"value":"Beatdrop"}]}

That’s two events. The id value is meant to let you synchronize with the server. When you connect, you’re told the last event id, and then each subsequent event tells you its id, and you can keep up to date with the event stream. In the Nanoleaf API, that’s all thrown out the window. The id field, here, is actually event type id. It tells you what kind of event is described by the JSON in the data. Why abuse the id field for this instead of putting it in the JSON? I don’t know.

Anyway, it could make sense that the id query parameters were for one kind of type and the event ids were a different id type. It doesn’t appear to be the case, though. If I want effect events, I subscribe with the id parameter set to 3, not … well, they didn’t give a value for effects in the parameter type definition. It seems to just be an error. Now we know, and we’ll trust §3.5.2 over §3.5.1.

Back to the events! Being able to get notified when the layout, state, or active effect changes sounds like it could be useful for some things, but I had no need. I wanted to know about touch events. Why? I don’t know, it just sounded neat.

server-sent touch events

A touch event, like every other event, is provided as JSON in the data attribute of the server-sent event. Here’s an example:

id: 4
data: {"events":[{"panelId":-1,"gesture":5}]}

id: 4
data: {"events":[{"panelId":-1,"gesture":4}]}

The gesture key is another numeric id, with the following definitions:

  • 0: single tap
  • 1: double tap
  • 2: swipe up
  • 3: swipe down
  • 4: swipe left
  • 5: swipe right

When you get a tap, the panelId is the panel id of the tapped panel. When you get a swipe, the panel id is -1, because a swipe is defined as swiping across two or more panels.

I have never seen the server-sent events provide a tap event. Also, I find their reporting of swipe events very unreliable. They’re reported with a large delay, and often not reported at all. I’d say the other event types have delays also, but I find it less of a problem that there’s a 700ms delay between power off and power off event than that there’s a 700ms delay between touching the device and seeing the touch event.

This was not going to be useful. Fortunately, there’s a touch stream, where you can get “fine resolution, low latency” touch data streamed to you.

the touch stream

It works like this. You still have to start up your event stream connection, even though you won’t be reacting to the events. It’s just a way to tie the duration of the streaming to something else. When you make the request, though, provide the HTTP header TouchEventsPort. This tells the Nanoleaf controller where to stream the events. It will send datagrams to the requesting IP at that port, and it will send them in real time. Sound great? Well, in my experience, it isn’t.

First, I had some frustration setting up the whole program, all of which was my fault. I have a weird mental block about quickly writing UDP listeners with IO::Async, and I don’t know why. Fortunately, I recognized that I was hitting that problem and switched to plain old Socket, which worked great, except I needed to initiate the long-running HTTP request with curl. Silly, but fine. None of this is why I found the end result unsatisfying.

The first problem is the binary format of the datagram. Why aren’t the datagrams JSON? My guess is that the onboard processor isn’t up to real time encoding of arbitrary multi-panel touch events into JSON, and I can respect that. Who doesn’t enjoy writing a little binary data parser once in a while, right? The problem for me came first from the documentation. Again!

The documentation says the format of the datagrams is as follows:

  <(touchType = 3bits |
touchStrength = 4bits)1 = 1B>

 <(touchType = 3bits | touchStrength = 4bits)2 =

 <(touchType = 3bits | touchStrength = 4bits)3 =

 <(touchType = 3bits | touchStrength = 4bits)4 =
 <(touchType = 3bits | touchStrength = 4bits)_n
= 1B>

First off: what? The first line seems like it might make sense: three bits for “touch type”, then four bits for “touch strength”, then a set bit. Repeat. But then the second byte replaces the 1, which I took for “a set bit” with a 2. You can’t have 7 bits, then a 2, and have it make one byte. What??

This is okay, because the documentation continues, contradicting itself but providing much more useful information.

The first 2 Bytes represents the number of panels that are currently undergoing a touch event. After that follows nPanels number of 5B packets, each packet representing touch data for that panel.

The first 2B of the packet represents the panelId of the panel that is currently undergoing a touch event. The next 1 byte is a combination of the Touch Type and Touch Strength:

[ diagram ]

The last 2 bytes represent the panelId of the panel swiped from only in case of a swipe event. This value is otherwise set to 0xFF

Okay! Now we’re getting somewhere. We get (2 + 5n) bytes, where n is the number of touched panels. The first two bytes provide n. Great!

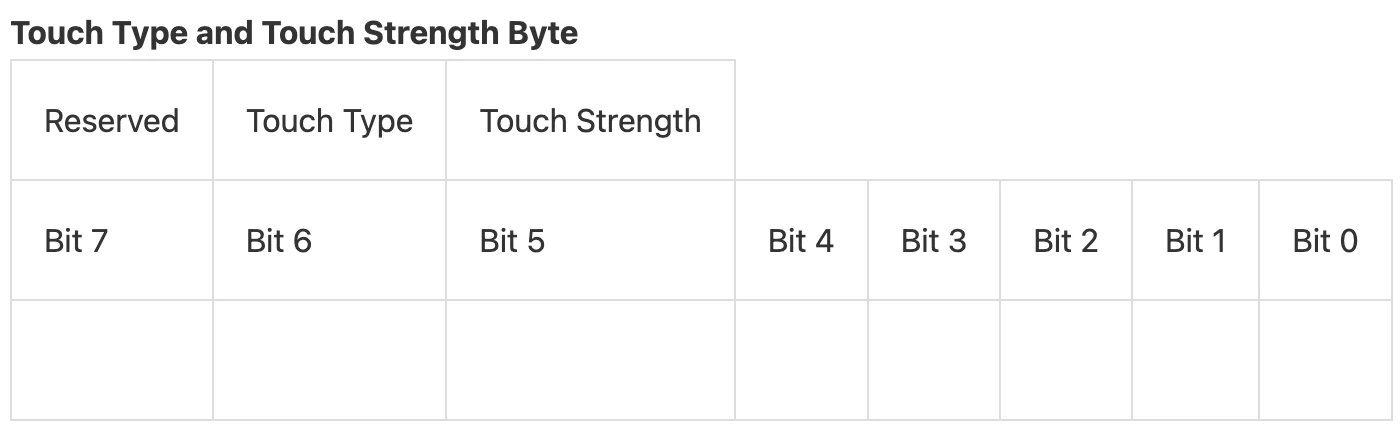

Now we just need to know how to interpret the per-panel touch type and strength, helpfully given in a diagram. Here it is:

mostly-worthless diagram


It looks to me like this is another unfortunate problem with Nanoleaf’s API site renderer. The table header is probably meant to have markers for “this header spans n columns”, but it doesn’t make it into the HTML. So, which bits are part of which field? Hard to say. The good news was that I did receive datagrams, so all I had to do was inspect the packets, right? This was pretty easy, basically a pretty printer plus this:

my $sock = IO::Async::Socket->new(
  on_recv => sub ($self, $dgram, $addr) {
    state $counter = 1;
    Nib::TouchUtil->dump_dgram($dgram, $counter++); # <-- pretty printer

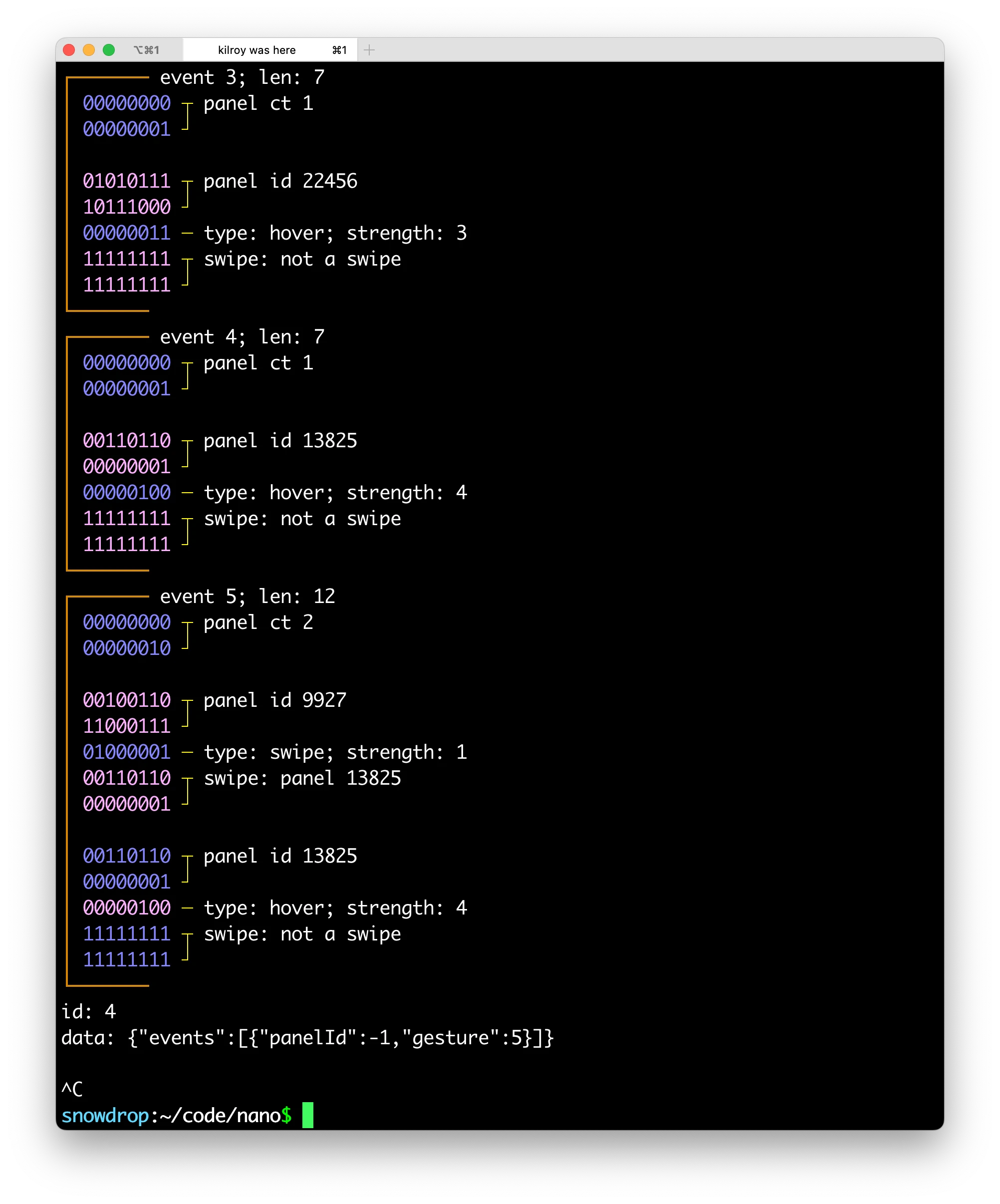

A couple events get dumped like this:

much better diagram

I got everything working, it seems, but it’s really not satisfactory. First off, I can tap as much as I want, I get “hover” events. I can get a swipe (as you can see in the diagram), but basically never a tap. I hoped that this was going to turn out to be a misunderstanding of that confusing packet definition, but I don’t think it is. You can tell an event is a swipe because the last two bytes aren’t 0xFF. Given that, the type/strength byte needs to have an 100 in it to represent the touch type for swipe. That only happens in one place in swipes: the right three bits of the left nybble. That leaves the right four for touch strength, which never seems like a useful value.

Beyond that, the delivery of these datagrams isn’t reliable. I don’t mean “UDP isn’t reliable”, I mean that it feels like the Nanoleaf controller only sends these events when it feels like it. If I hold my finger on the panel, I get repeated hover events… sometimes… for a while. It’s not terrible, but it doesn’t feel like something I could really rely on for anything but a goof. For a goof, though, I’d have built it to show somebody, and I wouldn’t want it to fall flat!

There’s one more problem. For a while, during development, I stopped getting the datagrams at all. It happened when I was trying to move the HTTP event stream code into Perl, and my initial theory was that initiating the HTTP request with Perl wasn’t starting the streaming datagrams, but initiating with curl was. I tested this over and over, I fired up Wireshark, I fiddled with parameters, IP version, I asked friends. Finally, I did some things in a different order and realized that as best as I could tell, it didn’t matter what HTTP client I used. The problem was that I needed two HTTP connections active for the UDP stream to begin. It was easy to reproduce with a bunch of different combinations.

A week later, that symptom was gone, but the weird and unreliable datastream was still there. I was never particularly attached to doing anything with the touch events, so I just gave up on the branch and decided my next hunk of work would be about putting colors on panels. At least I made a pretty packet dumper!

Written on September 1, 2023
